Model | SOP156H1-L1V2 |
Design | Open frame design . |
LCD Type | 15.6"TFT-LCD ,16 : 9 screen |
Recommend Resolution | 1366(RGB)×768(WXGA) |
Touch panel | Capacitive Touch ( 10 point) is optional |
Brightness | 300 /500/1000 nits optional |
Light sensor | Brightness can be changed automatically, it's 1000 nits at day time, and turn to 400-500 nits at night, which will save the panel lifespan a lot. |
Monitor interface Input | VGA + HDMI |
Contrast ratio | 1000 : 1 (Typ.) |
Viewing angle (v/h) | 80°/80°/80°/80° |
Operating System | Windows 7/8/10,Raspberry Pi |

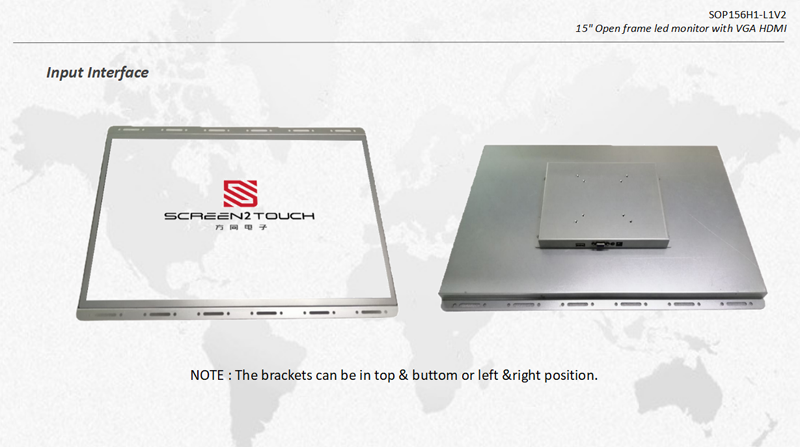

Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
Touch interface | USB port |
Mount Interface | VESA 75 & 100mm |
Regular Warranty | 1 year for LCD & components |
