Overview
our 32" Industrial all in one touch PC with high brightness (500 nits / 1000 nits/1500 nit), which is sunlight readable, can work outdoors. This 32 inch All in one touch pc is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine , Gaming & other terminal machines .

Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.

Different main board is provided, like J1900 ,i3 , i5 & i7 chip .

Key specifications
* Good looking, pure flat design + aluminum alloy frame . (OEM design is optional)
* 500 - 1000 -1500 nits brightness, which is sunlight readable and light sensor , brightness can be adjusted automatically
* 3mm tempered glass, vandal-proof function, AG Anti-glare function is optional.
* Surface IP65 & waterproof
* J1900, i3 , i5 , i7 chip CPU is optional, 4G /8G RAM , 64G /120G /256G SSD is optional.


Model	AO32CH1-P1i5G7
Design	Pure flat . Aluminum alloy + metal frame
Waterproof	Surface is IP65
LCD Type	32＂TFT-LCD ,16 : 9 screen ( IPS & TN )
Touch panel	Capacitive Touch ( 10 point) ,with 3mm tempered glass ( AG is optional)
Recommend Resolution	1920(RGB)×1080
CPU	Intel i5-7200 U 2.5GHz ( Max 3.1Ghz)
Brightness	500 -- 1000 -1500 nits optional
Light sensor	Can ajust the brightness automatically, it’s 1000 or1500 nits at day time, and turn to 400-500 nits at night.
Video Card	Support DirectX® 10.1Support HD Graphics 4000 / HD-DVD  HD playback
Input Voltage	110-240 VAC
LCD Resolution	1920x1080
Contrast ratio	1400 : 1 (Typ.)
Viewing angle (v/h)	85°/85°/85°/85° full viewing angle
Operating System	Windows 7/8/10,Linux ,Ubuntu,Raspberry Pi
WIFI	Support
4G Module	Optional

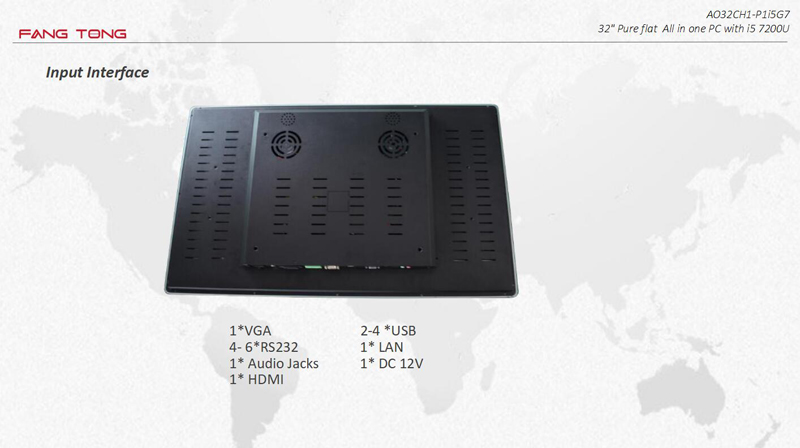

Interface	2 x Audio jacks (Line Out, Mic In) 1 x HDMI port 1 x D-Sub (VGA) port 2-4 x USB port   4-6 x RS232 /COM 1 x LAN ( Dual lan is optional) 1 x DC12V 1x 25 pin printer connector ( Optional)
Main board	Mini ITX 170x170mm
Operating system	Windows 7/8/10
Power Supply	voltage: 12V DC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
