Overview our 23.6" professional Industrial monitors with high brightness (500 nits - 1000 -1500nits), which is sunlight readable, with light sensor function optional.This 23.6inch outdoor monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine & Gaming .

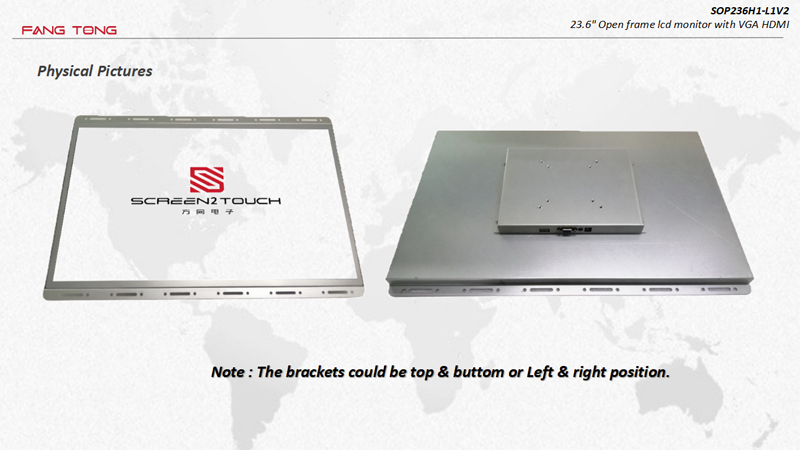

Key specifications* Open frame design,is specially for embedded application.
* 500 - 1000 -1500 nits brightness optional, sunlight readable.
* Touch function is optional.
Model
| SOP236H1-L1V2
|
Design
| Open frame design
|
LCD Type
| 23.6＂TFT-LCD ,16 : 9 screen ( IPS & TN )
|
Touch panel
| Capacitive Touch is optional
|
Recommend Resolution
| 1920(RGB)×1080
|
Brightness
| 1000 nits ( 1500 nits is optional)
|
Input Voltage
| 110-240 VAC
|
LCD Resolution
| 1920x1080
|
Contrast ratio
| 1000 : 1 (Typ.)
|
Viewing angle (v/h)
| 89°/89°/89°/89° or 85°/85°/80°/80°
|
Application
| Embedded application
|
Interface
| VGA,HMDI ( DVI & AV is optional)
|
Mount Interface
| VESA 100mm
|
Regular Warranty
| 1 year for panel & components
|
