Overview Our 10.1" professional Industrial monitors with high brightness ( 1000 nits), which is sunlight readable, can work outdoors. This 10.1 inch touch screen monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine, Gaming and different terminal machine .
Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.
Key specifications
* Good looking, metal frame + embedded design . (OEM design is optional)
* 1000 nits brightness, sunlight readable.
* 3mm tempered glass, vandal-proof function, AG Anti-glare function is optional.
Model
| OPT101CH1-P1V2
|
Design
| Pure flat frame
|
LCD Type
| 10.1＂TFT-LCD ,16 : 10 screen ( IPS )
|
Touch panel
| Capacitive Touch ( 10 point) ,with 3mm tempered glass
|
Light sensor
| Can ajust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
|
Recommend Resolution
| 1280(RGB)×800(WXGA)
|
Brightness
| 1000 nits optional
|
Input Voltage
| 110-240 VAC
|
Contrast ratio
| 1000 : 1 (Typ.)
|
Viewing angle (v/h)
| 85°/85°/85°/85°
|
Operating System
| Windows 7/8/10,Raspberry Pi
|

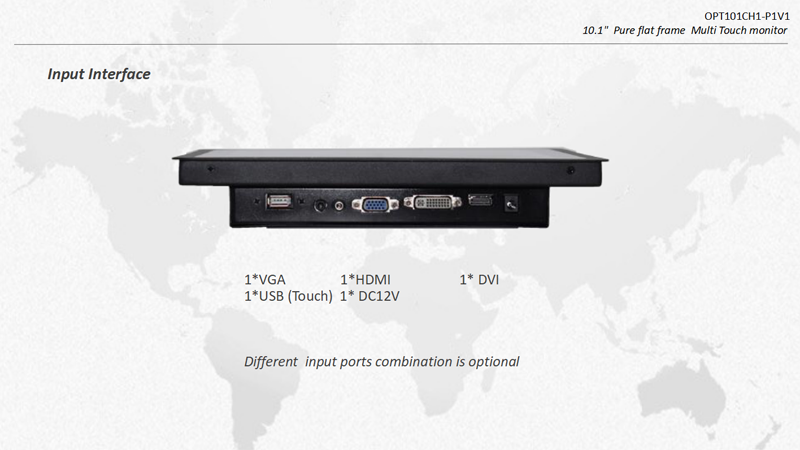

Interface
| VGA,HMDI ( DVI & AV is optional)
|
Touch port
| USB port ( RS232 is optional)
|
Mount Interface
| VESA 100mm
|
Regular Warranty
| 1 year for LCD & components
|
