Overview our 12" Industrial monitors with high brightness ( 1000 -1500 nits), which is sunlight readable, can work outdoors. This 12 inch open frame touch screen monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine & Gaming .
Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.
Key specifications
* Open frame design, which is better for embedded application. Other design is optional.
* 300-1000 nits brightness, sunlight readable,with light sensor function, brightness can be adjusted automatically.
* 3mm tempered glass & Anti-glare glass is optiotional.
*
Working temperature : -20~70°C optional
Model
| OPT121CH1-L1V1
|
Design
| Metal frame
|
LCD Type
| 12＂TFT-LCD , 4 : 3 screen ( IPS or TN )
|
Touch panel
| Capacitive Touch ( 10 point)
|
Recommend Resolution
| 1024(RGB)x768(SXGA)
|
Brightness
| 300 - 1000-1500 nits options
|
Input Voltage
| 110-240 VAC
|
Contrast ratio
| 700 : 1 (Typ.)
|
Viewing angle (v/h)
| 85°/85°/85°/85° or 80°/80°/80°/80°
|
Operating System
| Windows 7/8/10,Raspberry Pi
|

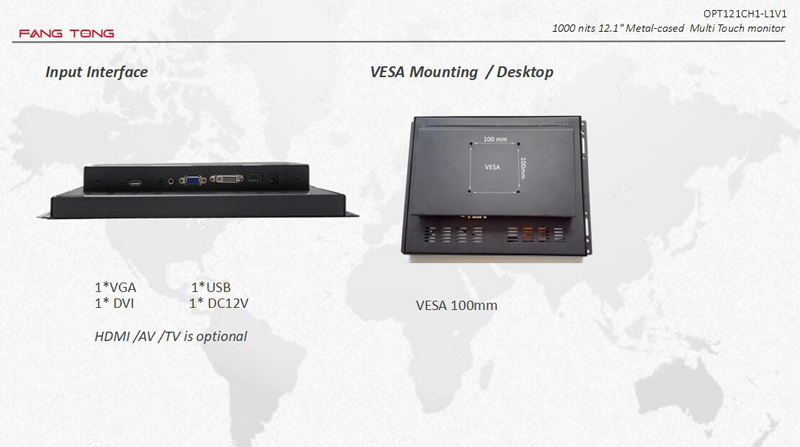

Interface
| VGA + DVI (HMDI & AV is optional)
|
Touch port
| USB port ( RS232 is optional)
|
Mount Interface
| VESA 75 & 100mm
|
Power supply
| 100-240 VAC, 50-60 Hz
|
Regular Warranty
| 1 year for LCD & components
|
