Overview
our 19" Industrial all in one touch PC with high brightness (500 nits / 1000 nitst), which is sunlight readable, can work outdoors. This 19 inch AIO All in one touch pc is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine , Gaming & different terminal machines .

Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.

Different main board is provided, like J1900 ,i3 , i5 & i7 chip .

Key specifications
* Good looking, Industrial design . (embedded & wall mounted )
* 500 - 1000 nits brightness, sunlight readable.
* 3mm tempered glass, vandal-proof function, AG Anti-glare function is optional.
* J1900, i3 , i5 , i7 chip CPU is optional, 4G /8G RAM , 64G /120G /256G SSD is optional.


Model	AO19CH1-L1J19
Design	Pure flat . Aluminum alloy + metal frame
Waterproof	Surface is IP65
LCD Type	19＂TFT-LCD ,15 : 4screen ( IPS or TN )
Touch panel	Capacitive Touch ( 10 point)
Recommend Resolution	1280(RGB)x1024(SXGA)
CPU	Intel  J1900  Quad core 22nm,2.0GHz  ( i3,i5,i7 is optional)
Brightness	500 -- 1000 nits optional
Light sensor	Can adjust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
Video Card	Support DirectX® 10.1Support HD Graphics 4000 / HD-DVD  HD playback
Input Voltage	110-240 VAC
Contrast ratio	1400 : 1 (Typ.)
Viewing angle (v/h)	85°/85°/85°/85° full viewing angle
Operating System	Windows 7/8/10,Linux ,Ubuntu,Raspberry Pi
WIFI	Support
4G Module	Optional

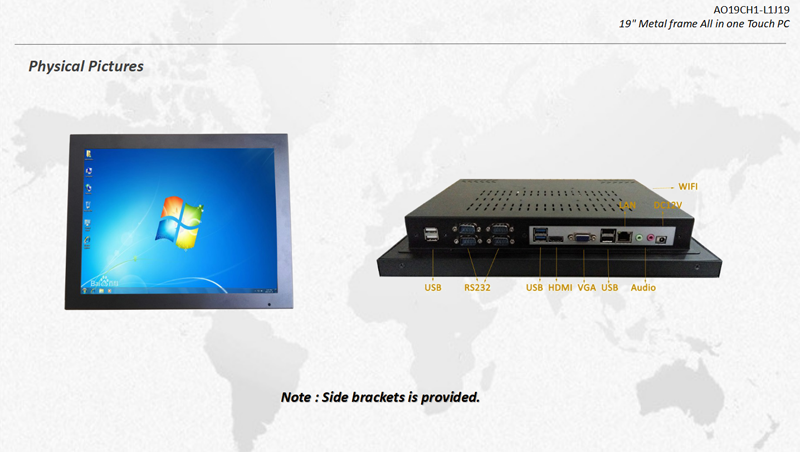

Interface	2 x Audio jacks (Line Out, Mic In) 1 x HDMI port 1 x D-Sub (VGA) port 2-4 x USB port   4-6 x RS232 /COM 1 x LAN 1 x DC12V 1x 25 pin printer connector ( Optional)
Main board	Mini ITX 170x170mm
Power Supply	voltage: 12V DC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
