Overview Our 7" professional Industrial monitors with high brightness ( 800 nits), which is sunlight readable, can work outdoors. This 7 inch touchscreen monitor with pure flat design ,with good looking and is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine, Gaming and different terminal machine .
Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.
Key specifications
* Good looking, pure flat frame + embedded design (with 2x brackets)
* 800 nits brightness, sunlight readable.
* 3mm tempered glass, vandal-proof function & AG Anti-glare function is optional.
Model
| SOPT070C-L1V1
|
Design
| Pure flat frame design
|
LCD Type
| 7＂TFT-LCD , 17:10 screen ( IPS )
|
Touch panel
| Capacitive Touch ( 10 point)
|
Recommend Resolution
| 1024(RGB)×600(WSGA)
|
Brightness
| 300- 800 nits optional
|
Input Voltage
| 110-240 VAC
|
Contrast ratio
| 700 : 1 (Typ.)
|
Viewing angle (v/h)
| 85°/85°/85°/85°
|
Backlight lifespan
| 30k hours
|
Operating System
| Windows 7/8/10,Raspberry Pi
|

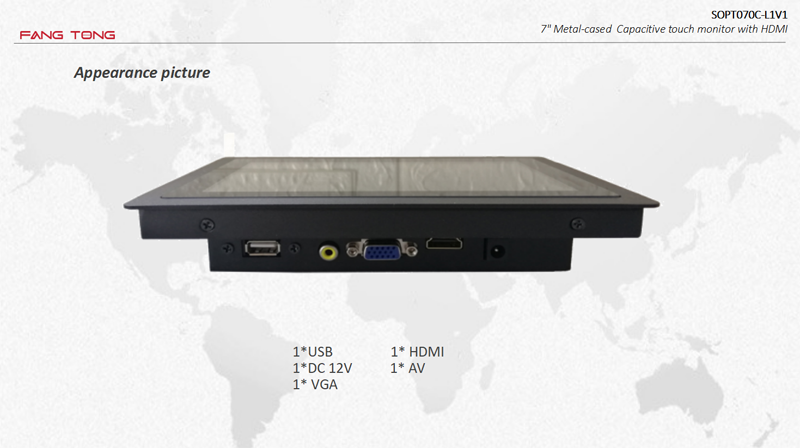

Interface
| VGA,HMDI ( DVI & AV is optional)
|
Touch port
| USB port ( RS232 is optional)
|
Mount Interface
| VESA 75mm
|
Regular Warranty
| 1 year for LCD & components
|
