Overview Our 9.7" professional Industrial monitors with high brightness ( 1000 nits), which is sunlight readable, can work outdoors. This 9.7 inch touch screen monitor with pure flat design ,with good looking and is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine, Gaming and different terminal machine .
Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.

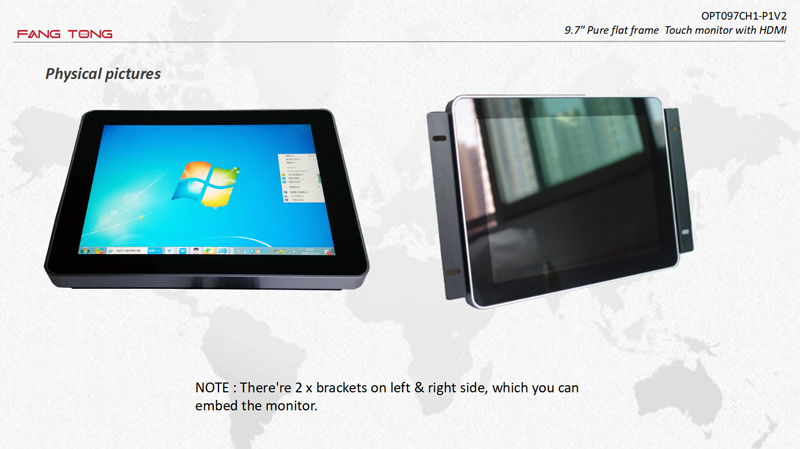

Key specifications* Good looking, pure flat frame + embedded design (with 2x brackets)
* 1000 nits brightness, sunlight readable.
* 3mm tempered glass, vandal-proof function & AG Anti-glare function is optional.
Model
| OPT097CH1-P1V2
|
Design
| Pure flat frame design
|
LCD Type
| 9.7＂TFT-LCD , 4: 3 screen ( IPS )
|
Touch panel
| Capacitive Touch ( 10 point)
|
Recommend Resolution
| 1024(RGB)×768(XGA)
|
Brightness
| 1000 nits optional
|
Input Voltage
| 110-240 VAC
|
Contrast ratio
| 700 : 1 (Typ.)
|
Viewing angle (v/h)
| 85°/85°/85°/85°
|
Backlight lifespan
| 30k hours
|
Operating System
| Windows 7/8/10,Raspberry Pi
|
Interface
| VGA,HMDI ( DVI & AV is optional)
|
Touch port
| USB port ( RS232 is optional)
|
Mount Interface
| VESA 100mm
|
Regular Warranty
| 1 year for LCD & components
|
