Overview
our 17" Industrial all in one pc with high brightness ( 1000 nits), which is sunlight readable, can work outdoors. This 17 inch open frame touchscreen monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express  machine & Gaming  .
Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.

Key specifications
* Open frame design, which is better for embedded application. Other design is optional.
* 1000 nits brightness & sunlight readable,with light sensor function, which can adjust the brightness automatically.
* 3mm tempered glass, vandal-proof function ,AG Anti-glare function is optional.
* J1900, i3 , i5 , i7 chip CPU is optional, 4G /8G RAM , 64G /120G /256G SSD is optional.




Model	AO17CH1-L1J19
Design	Pure flat . Aluminum alloy + metal frame
LCD Type	17＂TFT-LCD , 5:  4  screen ( IPS or TN )
Touch panel	Capacitive Touch ( 10 point) ,with 3mm tempered glass ( AG is optional)
Recommend Resolution	1280(RGB)x1024(SXGA)
Chip	Intel  J1900  Quad core 22nm,2.0GHz  ( i3 i5 & i7 chip is optional)
Video card	Support DirectX® 10.1Support HD Graphics 4000 / HD-DVD  HD playback
Brightness	500 -- 1000 -1500 nits optional
Light sensor	Can ajust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
RAM	4G DDR3 ( 4G /8G)
Flash memory	64G /120G/256G SSD
WIFI	Support
4G Module	Optional
Contrast ratio	800 : 1 (Typ.)
Viewing angle (v/h)	85°/85°/85°/85°  or 80°/80°/80°/80° full viewing angle
Operating System	Windows 7/8/10,Linux ,Ubuntu
WIFI	Support
4G Module	Optional

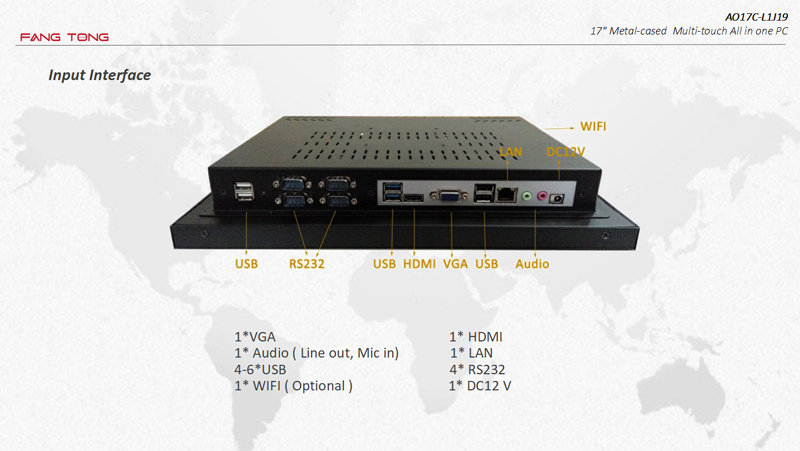

Interface	2 x Audio jacks (Line Out, Mic In) 1 x HDMI port 1 x D-Sub (VGA) port 2-4 x USB port   4-6 x RS232 /COM 1 x LAN ( Dual Lan is optional) 1 x DC12V 1x 25 pin printer connector ( Optional)
