Outdoor 1500 nits18.5" 18.5 inch Pure flat Touchscreen monitor Vending machine

2021-03-01 waterproof touchscreen monitor

Overview
our 18.5" Industrial Touch screen monitor with high brightness (500 nits / 1000 nits/1500 nit), which is sunlight readable, can work outdoors. This 18.5 inch touchscreen monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine , Gaming & different terminal machines .

Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.

Key specifications
* Pure flat design, which surface is waterproof. Side brackets is optional.
* 500 - 1000 -1500 nits sunlight readable.brightness, light sensor function,which brightness is adjustable automatically.
* 3mm tempered glass, vandal-proof function &AG Anti-glare function is optional.

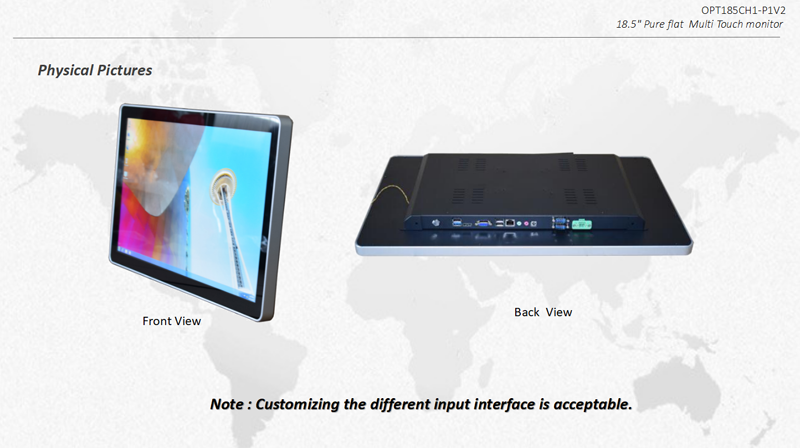

Model	OPT185CH1-P1V2
Design	Pure flat design ( surface is waterproof & vandal-proof)
Screen size	18.5＂16: 9 screen,
Glass	3mm tempered glass ( Anti-glare glass is optional)
Touch panel	Capacitive Touch ( 10 point)
Recommend Resolution	1366(RGB)×768(WXGA)
Brightness	500 -- 1000 -1500 nits optional
Light sensor	Can adjust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
Input Voltage	110-240 VAC
Contrast ratio	1000 : 1 (Typ.)
Operating System	Windows 7/8/10,Raspberry Pi
Interface	VGA + DVI (HMDI & AV is optional)
Touch port	USB port ( RS232 is optional)
Viewing angle (v/h)	85°/85°/85°/85° or 80°/80°/80°/80° full viewing angle
Speaker	optional
Mount Interface	VESA 100mm
Power Supply	voltage: 12V DC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Regular Warranty	1 year for LCD & components
