Overview
our 24" Industrial all in one touch PC with high brightness (500 nits / 1000 nits/1500 nit), which is sunlight readable, can work outdoors. This 24 inch All in one touch pc is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine , Gaming & other terminal machines .
The 24 inch wide screen all in one pc support the Windows system, like Windows 7, windows 8, windows 10 , Linux & Ubuntu ,.And technical support is provided.
Different main board is provided, like J1900 ,i3 , i5 & i7 chip .

Key specifications
* Good looking, pure flat design + aluminum alloy frame . (OEM design is optional)
* 500 - 1000 -1500 nits brightness, which is sunlight readable and light sensor , brightness can be adjusted automatically
* 3mm tempered glass, vandal-proof function, AG Anti-glare function is optional.
* Surface IP65,waterproof
* J1900, i3 , i5 , i7 chip CPU is optional, 4G /8G RAM , 64G /120G /256G SSD is optional.

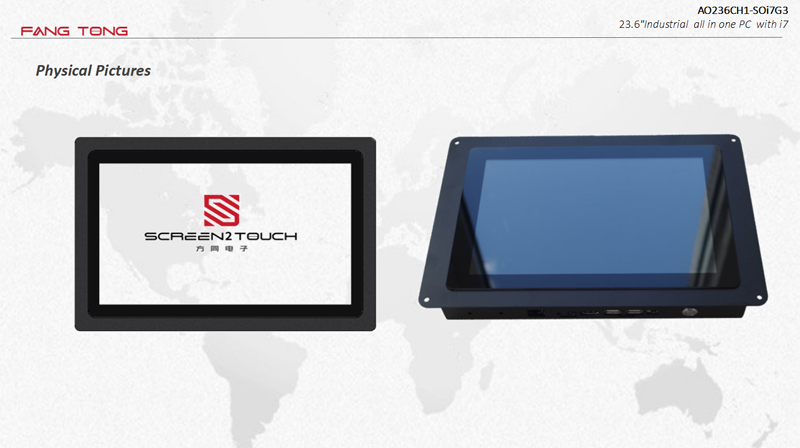

Model	AO236CH15-P2i7G3
Design	Pure flat . Aluminum alloy + metal frame
Waterproof	Surface is IP65
LCD Type	23.6＂TFT-LCD ,16 : 9 screen ( IPS & TN )
Touch panel	Capacitive Touch ( 10 point) ,with 3mm tempered glass ( AG is optional)
Recommend Resolution	1920(RGB)×1080
CPU	Intel i7-3520 2.9GHz   ( i3,i5,i7 is optional)
Chipset	HM70、HM76、HM77、QM77
Brightness	500 -- 1000 -1500 nits optional
Light sensor	Can ajust the brightness automatically, it’s 1000 or 1500 nits at day time, and turn to 400-500 nits at night.
Video Card	Support DirectX® 10.1Support HD Graphics 4000 / HD-DVD  HD playback
Input Voltage	110-240 VAC
LCD Resolution	1920x1080
Contrast ratio	1400 : 1 (Typ.)
Viewing angle (v/h)	85°/85°/85°/85°  or 80°/80°/80°/80° full viewing angle
Operating System	Windows 7/8/10,Linux ,Ubuntu
WIFI	Support
4G Module	Optional
Interface	2 x Audio jacks (Line Out, Mic In) 1 x HDMI port 1 x D-Sub (VGA) port 2-4 x USB port   4-6 x RS232 /COM 1 x LAN 1 x DC12V 1x 25 pin printer connector ( Optional)
Main board	Mini ITX 170x170mm
Operating system	Windows 7/8/10
Power Supply	voltage: 12V DC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
