Overview
our 21.5" Embedded Industrial monitors with high brightness (500 nits - 1000 nits), which is specially for embedded design, The multi-point capacitive touch panel is optional, which support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4. It’s widely used in indoor & outdoor applications, like ATM, Gas station, KIOSK,Vending machine, Express machine & Gaming.

Key specifications
* Open frame design (light weight),for embedded application.
* 500 - 1000 -1500 nits brightness, sunlight readable.
* capative touch panel is optional.


Model	SOP215H1-L1V2
Design	Embedded Open frame design
LCD Type	21.5＂TFT-LCD ,16 : 9 screen
Recommend Resolution	1920(RGB)×1080
Touch panel	Capacitive Touch ( 10 point) is optional.
Brightness	500 -- 1000 -nits optional
Light sensor	Brightness can be changed automatically, it's 1000 nits at day time, and turn to 400-500 nits at night, which will save the panel lifespan a lot.
Monitor interface Input	VGA +  HDMI
Touch interface	USB
Contrast ratio	1000 : 1 (Typ.)
Viewing angle (v/h)	89°/89°/89°/89° or 80°/80°/80°/80°
Operating System	Windows 7/8/10,Raspberry Pi

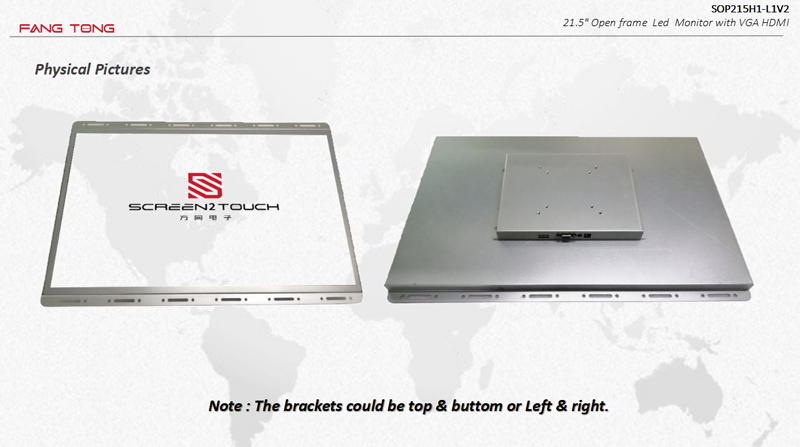

Mount Interface	1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical
Touch interface	USB port
Mount Interface	VESA 75 & 100mm
Regular Warranty	1 year for LCD & components
