Overview our 12" Industrial monitors with high brightness ( 1000 nits), which is sunlight readable, can work outdoors. This 12 inch open frame lcd monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine & Gaming .
Key specifications
* Open frame design, which is better for embedded application. Other design is optional.
*
300-1000-1500 nits brightness, sunlight readable.
* 1024*768 resolution,touch function is optional
Model
| OP121H1-L1V1
|
Design
| Metal frame
|
LCD Type
| 12＂TFT-LCD , 4 : 3 screen ( IPS or TN )
|
Touch panel
| Capacitive Touch ( 10 point) is optional.
|
Recommend Resolution
| 1024(RGB)x768(SXGA)
|
Brightness
| 300 - 1000 -1500 nits options
|
Input Voltage
| 110-240 VAC
|
Contrast ratio
| 700 : 1 (Typ.)
|
Viewing angle (v/h)
| 85°/85°/85°/85° or 80°/80°/80°/80°
|
Operating System
| Windows 7/8/10,Raspberry Pi
|

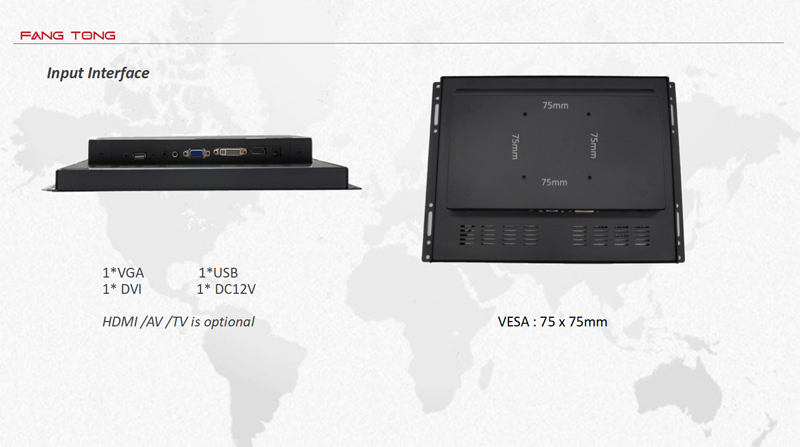

Interface
| VGA + DVI (HMDI & AV is optional)
|
Touch port
| USB port ( RS232 is optional) for touch panel.
|
Mount Interface
| VESA 75mm
|
Power supply
| 100-240 VAC, 50-60 Hz
|
Regular Warranty
| 1 year for LCD & components
|
