Overview our 15" Industrial monitors with high brightness ( 1000 nits), which is sunlight readable, can work outdoors. This 15 inch open frame touchscreen monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express machine & Gaming .
Key specifications
* Open frame design, which is better for embedded application. Other design is optional.
* 1000 nits brightness, sunlight readable,with light sensor function, which can adjust the brightness automatically.
* 3mm tempered glass & Anti-glare glass is optiotional.
* Touch function is optional.
Model
| OP15H1-L1V1
|

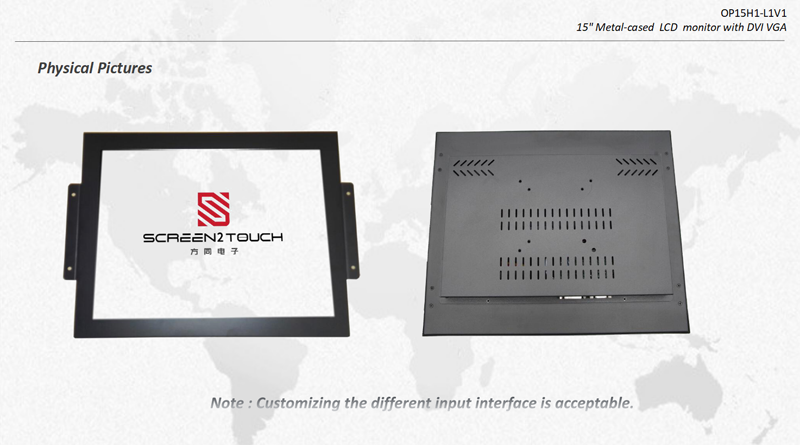

Design
| Open frame
|
LCD Type
| 15＂TFT-LCD , 4 :3 square screen ( IPS or TN )
|
Light sensor
| Can ajust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
|
Recommend Resolution
| 1024(RGB)x768(SXGA)
|
Brightness
| 1000 nits optional
|
Input Voltage
| 110-240 VAC
|
Contrast ratio
| 700 : 1 (Typ.)
|
Viewing angle (v/h)
| 85°/85°/85°/85° or 80°/80°/80°/80°
|
Operating System
| Windows 7/8/10,Raspberry Pi
|

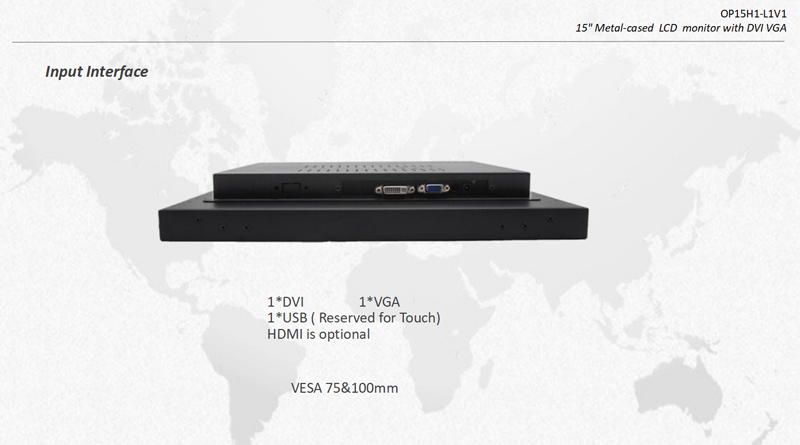

Interface
| VGA + DVI (HMDI & AV is optional)
|
Touch port
| USB port ( RS232 is optional)
|
Mount Interface
| VESA 75& 100mm
|
Power supply
| 100-240 VAC, 50-60 Hz
|
Regular Warranty
| 1 year for LCD & components
|
