| Model | AO185CH1-P1J19 |
| Design | pure flat aluminum alloy design |
| Screen size | 18.5＂16: 9 screen, |
| Glass | Normal glass ( 3mm tempered glass & Anti-glare glass is optional) |
| Touch panel | Capacitive Touch ( 10 point) |
| Recommend Resolution | 1366(RGB)×768(WXGA) |
| Brightness | 500 -- 1000 -1500 nits optional |
| Chip | Intel J1900 Quad core 22nm,2.0GHz ( i3 i5 & i7 chip is optional) |
| Video card | Support DirectX® 10.1Support HD Graphics 4000 / HD-DVD HD playback |
| RAM | 4G DDR3 ( 4G /8G) |
| Flash memory | 64G /120G/256G SSD |
| WIFI | Support |
| 4G Module | Optional |
| Light sensor | Brightness can be changed automatically, it's 1000 nits at day time, and turn to 400-500 nits at night. |
| Input Voltage | 110-240 VAC |
| Contrast ratio | 1000 : 1 (Typ.) |
| Viewing angle (v/h) | 85°/85°/85°/85° or 80°/80°/80°/80° full viewing angle |
| Video Play format | WMV,AVI, RM,RMVB,MPEG,TS,MP4 |
| Image play format | BMP,JPEG,PNG,GIF |
| Speaker | 8Ω/5W ( built-in) |
| Power Supply | voltage: 12V DC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |

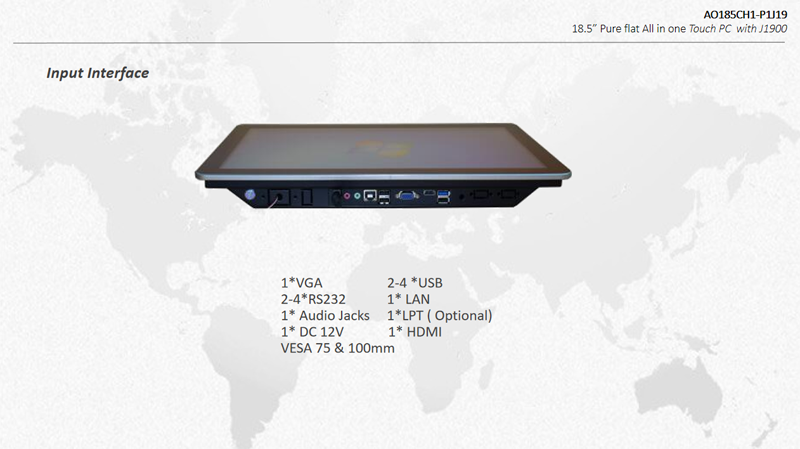

| Interface output | 2 x Audio jacks (Line Out, Mic In) 1 x HDMI port 1 x D-Sub (VGA) port 2-4 x USB port 2-4 x RS232 /COM 1 x LAN 1 x DC12V 1x 25 pin printer connector ( Optional) |
