17" 17 inch Open frame Touch screen Led monitor with 1000 nits for ATM terminal machine
2020-03-23 open frame lcd monitor
Overview
our 17" professional Industrial monitors with high brightness ( 1000 nits), which is sunlight readable, can work outdoors. This 17inch touchscreen monitor is widely used in different applications, like ATM, Gas station, KIOSK,Vending machine, Express  machine & Gaming  .
Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Raspberry pi 4 . Planar brings decades of rugged and extreme application display experience to touch screen monitors, making them the most dependable and well-performing on the market.

Key specifications
* Good looking, metal frame embedded design . (OEM design is optional)
* 1000 nits brightness, sunlight readable.
* 3mm tempered glass & Anti-glare glass is optiotional.


Model
OPT17CH1-L3V1
Design
Open frame
LCD Type
17"TFT-LCD , 5 : 4 screen ( IPS or  TN )
Touch panel
Capacitive Touch ( 10 point)
Light sensor
Can ajust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
Recommend Resolution
11280(RGB)x1024(SXGA)
Brightness
1000 nits optional
Input Voltage
110-240 VAC
Contrast ratio
1000 : 1 (Typ.)
Viewing angle (v/h)
 85°/85°/85°/85° or 80°/80°/80°/80°
Operating System
Windows 7/8/10,Raspberry Pi

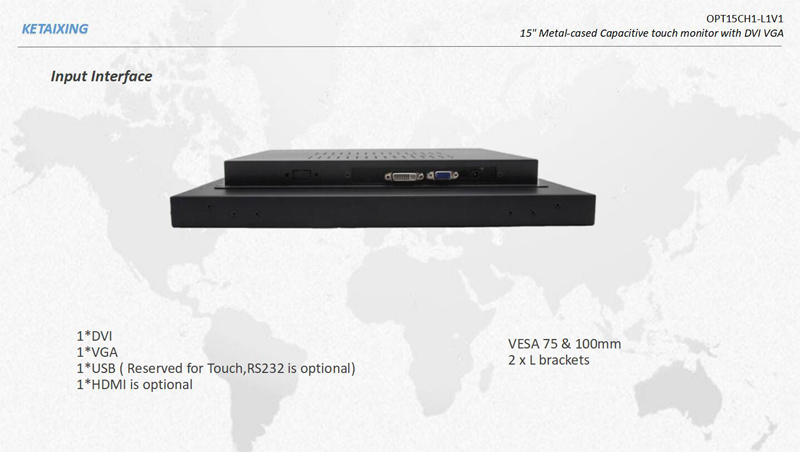

Interface
VGA + DVI (HMDI & AV is optional)
Touch port
USB port ( RS232 is optional)
Mount Interface
VESA  100mm
Power supply
100-240 VAC, 50-60 Hz
Regular Warranty
1 year for LCD & components
