Industrial 21.5" 21.5 inch AIO All in one Touch Panel PC 1000-1500 nits KIOSK Terminal machine
2020-03-10 21.5 inch all in one pc
Overview
our 21.5" Industrial All in one PC with high brightness (500 nits - 1000 nits) & Touch function, which is sunlight readable, can work outdoors. This 21.5 inch AIO Touch panel PC is widely used in many applications, like ATM, Gas station, KIOSK,Vending machine, Express machine & other terminal machines  .

Multi-point capacitive touch panel, support the Windows 7 , 8 ,& 10 , Linux & Ubuntu operating system . Providing the professional technical support.

Key specifications
* Good looking, pure flat design + aluminum alloy frame
* 500 - 1000 -1500 nits brightness, which is sunlight readable and light sensor , brightness can be adjusted automatically
* 3mm tempered glass, with vandal-proof function. Anti-glare function is optional.
* Chip J1900 CPU , and i3 i5 & i7 chip is optional.


Model
AO215CH1-P1J19
Design
Pure flat . Aluminum alloy + metal frame
LCD Type
21.5"TFT-LCD ,16 : 9 screen
Recommend Resolution
1920(RGB)×1080
Touch panel
Capacitive Touch ( 10 point) ,with 3mm tempered glass ( AG is optional)
Brightness
500 -- 1000 nits optional
Chip
Intel  J1900  Quad core 22nm,2.0GHz  ( i3 i5 & i7 chip is optional)
Video card
Support DirectX® 10.1Support HD Graphics 4000 / HD-DVD  HD playback
RAM
4G DDR3 ( 4G /8G)
Flash memory
64G /120G/256G SSD
WIFI
Support
4G Module
Optional
Light sensor

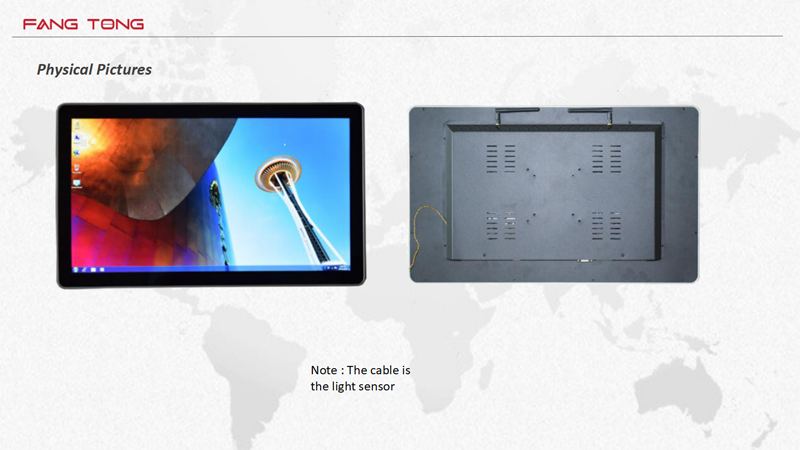

Can ajust the brightness automatically, it’s 1000 nits at day time, and turn to 400-500 nits at night.
Input Voltage
110-240 VAC
LCD Resolution
1920x1080
Contrast ratio
1000 : 1 (Typ.)
Viewing angle (v/h)
89°/89°/89°/89° or 80°/80°/80°/80°
Operating System
Windows 7/8/10,Raspberry Pi
Interface
VGA,HMDI ( DVI & AV is optional)
Touch interface
USB port
Speaker
8Ω/5W ( built-in)
Power Supply
voltage: 12V DC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Speaker
8Ω/5W ( built-in)
Interface output
2 x Audio jacks (Line Out, Mic In)
1 x HDMI port
1 x D-Sub (VGA) port
2-4 x USB port
2-4 x RS232 /COM
1 x LAN ( Dual lan is optional)
1 x DC12V
1x 25 pin printer connector ( Optional)
Regular Warranty
1 year for LCD & components
